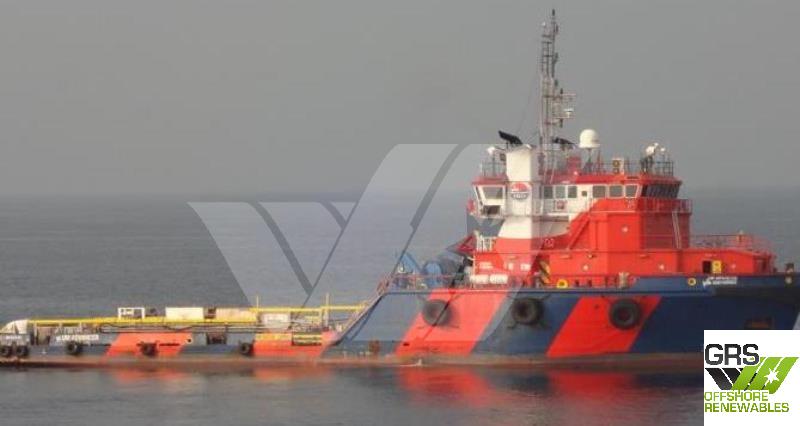

Description

LOA 60 m
Beam 16 m
Draft 4,8 m
Bollard Pull : 72 tons

Free Deck area about 360m²
Fire Fighting System of type FiFi 1 installed

Built in year 2003
Design is : Conan Wu 60m
Class : DNV
Flag : Thailand
Gross Tonnage of 1.595 and Nett Tonnage of 478

Deadweight : 1.780 metric tonnes

Speed : 13 knots
Engines : 2 x Deutz / Deutz AG SBV9M628, 4.050 kw, 1.000 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 350 kw, Bowthruster + Sternthruster (1 Bow Tunnel thruster 515kw + 1 Stern Tunnel thruster 368kw)

Specifications

Engine(s)

2 x 4.050 kw, 1.000 rpm, Deutz / Deutz AG SBV9M628,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
