Description
1186BSB Barge - RORO For Sale
- FROM DIRECT OWNERS -
It was originally built for shipping airplane wings for Airbus in Wales.
The low air draft and shallow draft makes it perfect for passing under low bridges and canals in cities.
It has a low level cargo deck with 300 tons capacity, lift system to lower cargo pallet legs in to the hull for low air draft, and electronically controlled ballasting and draft/air draft measurement system.

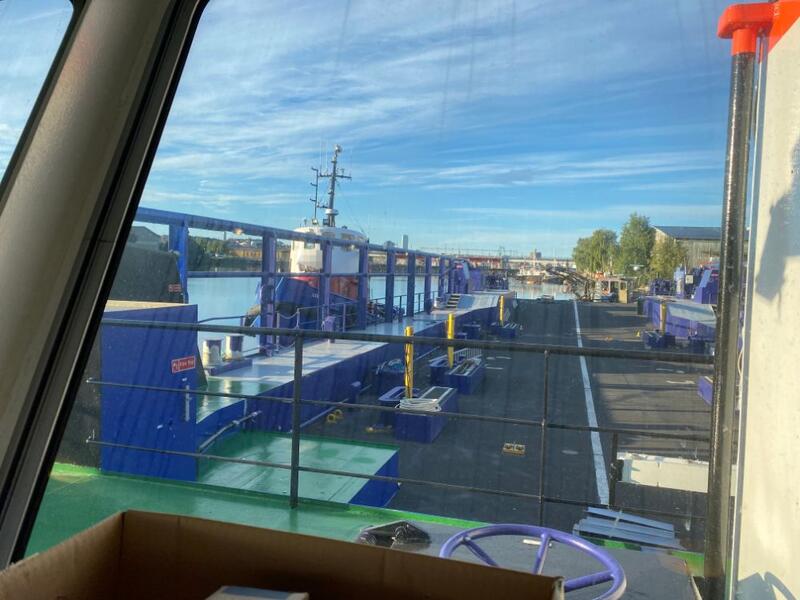

Cargo handling is done over the stern.
Latest dry dock 2021.
Specifications
| Vessel type: | 1186BSB Barge - RORO For Sale |
| Builder: | UNITED KINGDOM |
| Constructed: | 2003 |
| Class Society: | Local Swedish |
| Class Notation: | Inland Waters |
| No. of engines: | 4 |
| Engine model: | Cummins |
| Engine power: | 1789 |
| Cruising Speed: | 9 Knots |
| Length over all: | 57.80m |
| Beam: | 14.80m |
| Maximum draft: | 1.50m |
| Hull material: | Steel |
| Dry Weight: | 294 tons |
Accommodation
Misc: Cabins for a crew of four.
Construction
Built (year and place) 2003,UNITED KINGDOM
Hull material Steel
Length Overall (m) 57.80 m
Breadth (m) 14.80 m
Depth (m) 2.80 m
Draft (m) 1.50 m
DWT (tons) 294 tons
LENGTH ON LWL 55.45 m
SCANTUNG DRAUGHT 2 m
AIR DRAUGHT 4.3 M
FRAME SPACING 550 mm
Clear deck space: 380 m2.
Navigation Equipment
VHF – AIS – EPIRBS
Engine(s)
Total power output (BHP) 1789 bhp
Main Engine(s) (make,type) 4 x Cummins
Main Propulsion System Azimuth Jet Thrusters
Speed cruising 9 knots
Main Engines:
2x Cummins KTA19-M3, 477 kW each.
2x Cummins 6CTA 8,3M, 190 kW each.
Propulsion:
2x Jastram Azimuth Jet Thruster, type W60, 477 kW each.
2x Jastram Azimuth Jet Thruster, type W20, 180 kW each.
Certification
Flag SWEDEN
Class Society and Notation Local Swedish Inland Waters
